DPA Block
SV51007
2014.01.10
The following figure shows the hardware blocks of the receiver. In SDR and DDR modes, the data width
from the IOE is 1 and 2 bits, respectively. The deserializer includes shift registers and parallel load registers,
and sends a maximum of 10 bits to the internal logic.

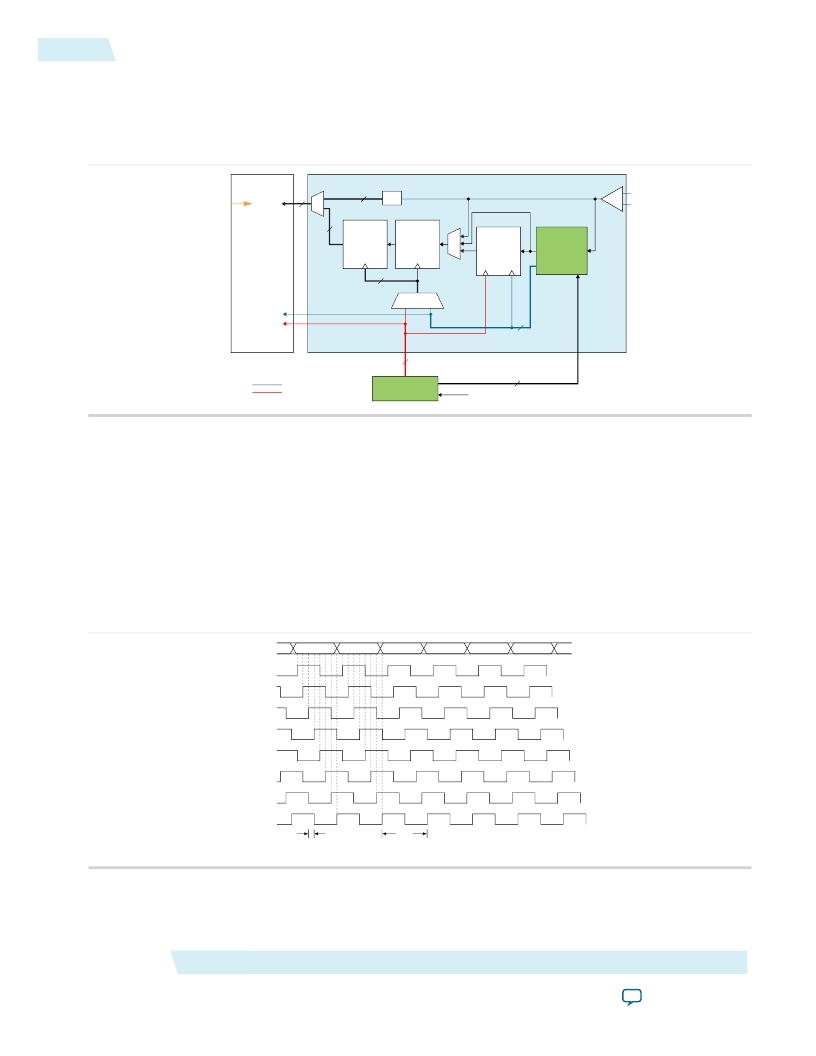

Figure 6-19: Receiver Block Diagram
IOE
10 bits
maximum
data width
rx_out
10
IOE supports SDR, DDR, or non-registered datapath
2
Deserializer
Bit Slip
Synchronizer
LVDS Receiver
DPA Circuitry
+
–
rx_in
10
FPGA
DOUT
DIN
DOUT
DIN
DOUT
DIN
Retimed
Data
DIN
Fabric
2
diffioclk
DPA Clock
(LOAD_EN,
rx_divfwdclk
rx_outclock
diffioclk)
Clock Mux
3
(DPA_LOAD_EN,
DPA_diffioclk, rx_divfwdclk)
3 (LVDS_LOAD_EN,
LVDS_diffioclk, rx_outclock)
8 Serial LVDS
Clock Phases
DPA Clock Domain
LVDS Clock Domain
Fractional PLL
rx_inclock
DPA Block
The DPA block takes in high-speed serial data from the differential input buffer and selects one of the eight
phases that the fractional PLLs generate to sample the data. The DPA chooses a phase closest to the phase
of the serial data. The maximum phase offset between the received data and the selected phase is 1/8 UI,
which is the maximum quantization error of the DPA. The eight phases of the clock are equally divided,
offering a 45° resolution.
The following figure shows the possible phase relationships between the DPA clocks and the incoming serial
data.
Figure 6-20: DPA Clock Phase to Serial Data Timing Relationship
rx_in
D0
D1
D2
D3
D4
Dn
0°
45°
90°
135°
180°
225°
270°
315°
0.125T vco
T vco
T VCO = PLL serial clock period
